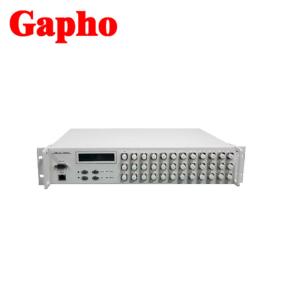

2U 1×32 Rack Mounted Switch Optical 850 /1300nm RJ45 RS232 Port

Name: 2U 132 Rack Mounted Switch Optical 850 1300nm RJ45 RS232 Port
Brand: GAPHO
Price: 1 USD

Brand Name : GAPHO

Model Number : 1x32 rack-mounted optical switch

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

Monitoring Port : RJ45, RS-232

Test Wavelength : 1310/1550 nm

Return Loss : SM≥45 MM≥ 30 dB

PDL : ≤0.1 dB

Optical Power : ≤500 mW

Insertion Loss : Typ:1 0 Max:1.2

Repeatability : ≤ ±0.05 dB

Chassis Type : 2U L482.6×W250×H89 mm

Contact Now

2U 1×32 rack-mounted optical switch 850 /1300 nm A 1X32 optical switch.pptx

Description:

1×32 rack-mounted optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Features	Application
Low insertion loss, Fast switching SerialNet, High Reliability, High Stability LED display panel. Visual display, Convenient operation Transparent transmission signal. High stability and reliability Channel and time interval of automatic scanning can be set up RS232 Control and RJ45 Ethernet Remote Management	FITL Cable Monitoring and Maintaining system Automatic Measurement Optical Network Remote Monitoring

specification

Parameters	Unit	SUN-FSW-1*N-1U (NS8)
Insertion Loss1,2	dB	Typ:1 0 Max:1.2
Wavelength Range	nm	850±40 / 1300±40	1260-1650
Test Wavelength	nm	850 /1300	1310/1550
Return Loss1,2	dB	SM≥45 MM≥ 30
Crosstalk 1	dB	≥55
PDL	dB	≤0.1
WDL	dB	≤0.25
Repeatability	dB	≤ ±0.05
Durability		≥10 Million
Optical Power	mW	≤500
Switching Time	ms	≤10 (sequence switch time of adjacent channel)
Operati ng	℃	-5～+55
Storage Temperature	℃	-40~+80
Relative Humidity	%	5-95
Monitoring Port		RJ45, RS232
Power Supply	V	AC: 100-240V (50/60Hz ) or DC: 36〜72V
Chassis Type	mm	2U L482.6×W250×H89
Remarks: Customization is available.

order in formation

optical route

2U 1×32 Rack Mounted Switch Optical 850 /1300nm RJ45 RS232 Port

Panel To Show

2U 1×32 Rack Mounted Switch Optical 850 /1300nm RJ45 RS232 Port

Power: Master switch of power supply
RJ45:Communications network management interface ;
RS-232: Rs- serial interface ; RS232 serial communication interface;
LCD:Devices that display information directly;
▲: Key to move up; ▼: Key to move down;
Enter: Key to determine;
Esc: Key to cancel;
com,1~8:Fiber interface;

2U 1×32 Rack Mounted Switch Optical 850 /1300nm RJ45 RS232 Port
